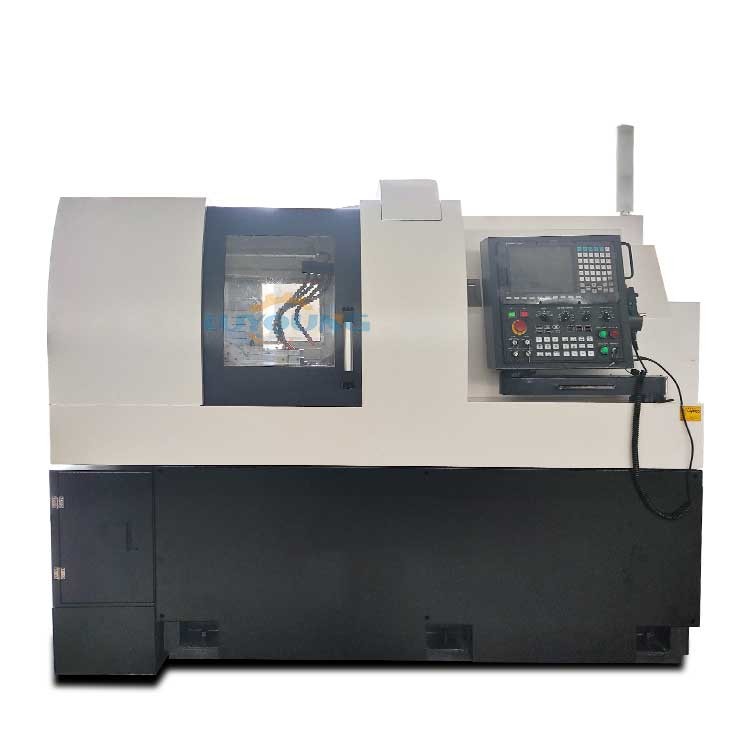

5 Axis Swiss Type CNC Lathe Machine For Accurate And Turning Of Small Parts Up To 20-25mm Diameter

Brand Name : cnc swiss lathe machine

Model Number : SM325

Certification : CE

Place of Origin : SHANDONG

MOQ : 1/STE

Price : $28000-$49000

Payment Terms : T/T

Supply Ability : 30/SET

Delivery Time : 35 DAYS

Packaging Details : non-fumigation wooden box

Contact Now

Specification
Description
Unit
Specifications
Processing capacity
Max maching diameter
mm
20
Stroke
mm
260
Max. Turning Diameter
mm
20
Main Spindle RPM
rpm
8000
Sub Spindle RPM
rpm
8000
Cross Driven Tools
rpm
5000
Back Work Tools
rpm
5000
C axis Additional Positive Brake
°
1/1000(0.001)
Max. Turning Diameter
mm
20
Traverse Rate
Stroke
X1 axis
mm
60
Y axis
mm
342.5
Z1 axis
mm
260
X2 axis
mm
355
Z2 axis
mm
220
Rapid Traverse Rate
X1 axis
m/min
24
Y/Z1/X2/Z2 axis
m/min
32
Number of tools
O.D Tools
ea
6
Front Work Tools
ea
5
Cross Living Tools
ea
4
Back Work Tools
ea
3(Rotation)+1(fixed)
O.D Tools specification
mm
12×12
Front Work Tools diameter
mm
(Standard)25
Power Tool Chuck Specifications
mm
ER16
Spindle motor
kw
2.2/3.7
Sub Spindle motor
kw
1.5/2.2
Motors
Servo axis motor
kw
0.75
Cross Driven Tools motor
kw
2.5kw
Back Work Tools motor
kw
1.0
Lubrication pump motor
w
5
Coolant motor
kw
0.4(pressure 0.5bar)
Coolant tank capacity
L
180
Lubrication tank capacity
L
1.8
Height from floor tospindle center
mm
1000
Dimension
mm
2560×1510×1660
Cross Weight
KG
3600
1
CNC controller: Taiwan Syntec Controller system
2
Automatic lubrication system
3
Water pump cooling system
4
Full Protection Frame
5
Cross living tools,4live tools
6
Z axis direction Fixed cutter holder,4 drilling tools holder(ER16)
7
P4 classes Precision screw guide:Japan THK brand(X,Y,Z)
8
Electric spindle
9
Bearing:Japan NSK
10
C axis Stepless indexing
11
X1,Y1,Z1,Z2 ,X2 aixs servo motor: Japan YASGAWA
12
Driving---Japan YASGAWA
13
Long workpieces feed tube
5 Axis Swiss Type CNC Lathe Machine For Accurate And Turning Of Small Parts Up To 20-25mm DiameterProduct Description
According to the latest market analysis, the SM205 holds an important position in the Sino-Swiss lathe market. Its high precision, multi-functionality and high efficiency make it the preferred device for many enterprises. Shandong Luyang Machinery Co., Ltd. is one of the main suppliers of this equipment and has 9 years of industry experience
Product Feature
1.Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
Company Profile
The main product of Shandong Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
